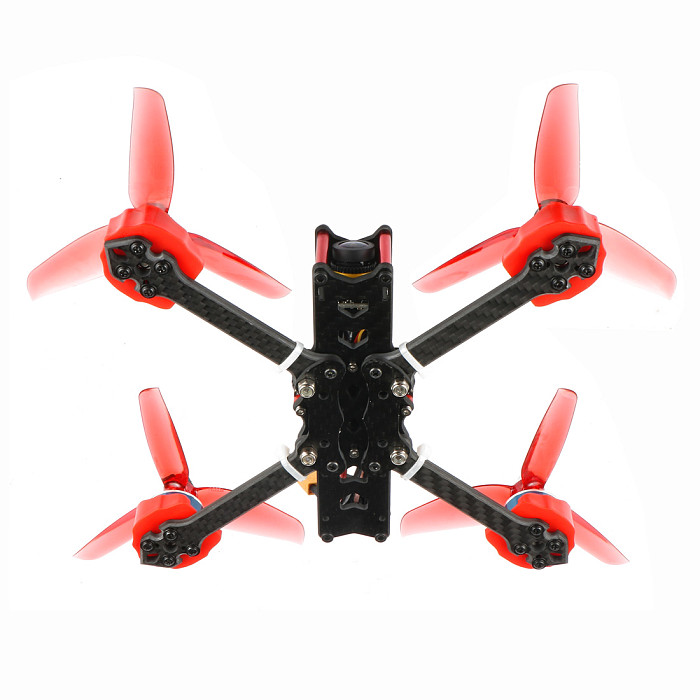

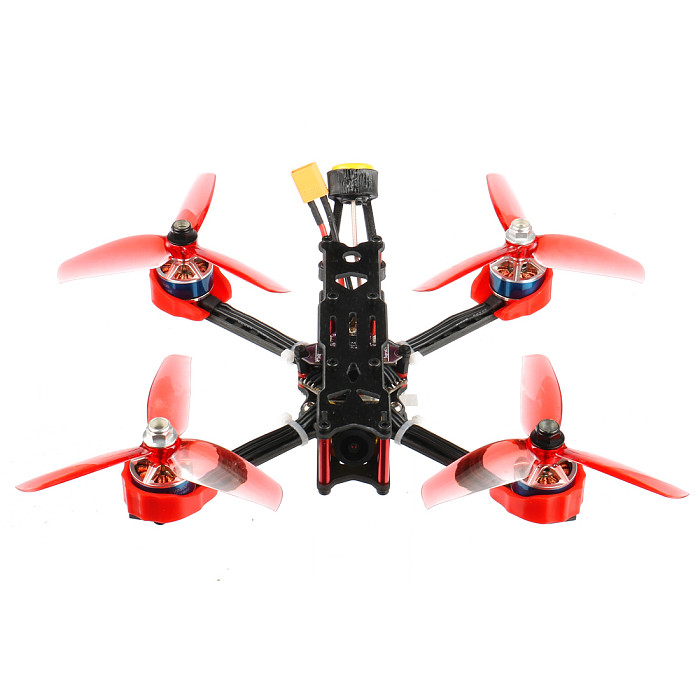

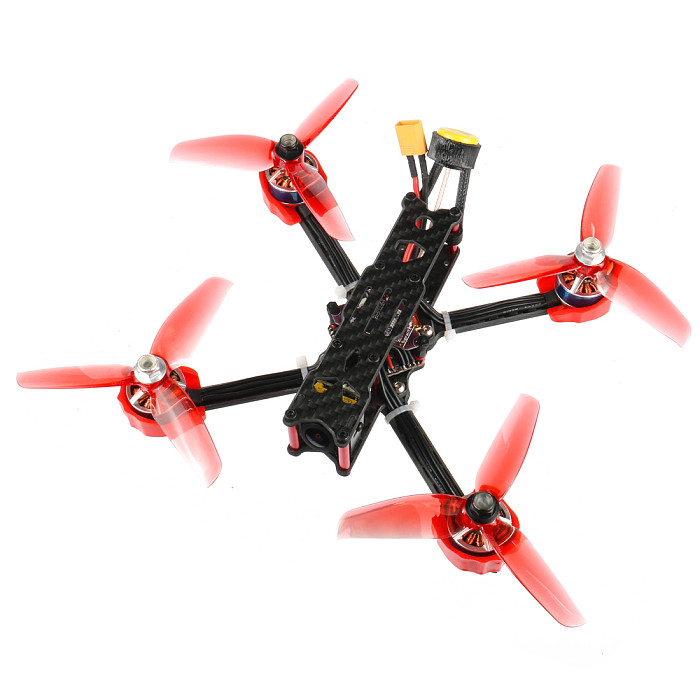

JMT F4 X1 175mm FPV Racing Drone 2-4S Quadcopter BNF Frsky Version with GHF411AIO Flight Controller XT1806-2500KV Motors Ratel 1200TVL FPV Camera Supra-VTX FD800 RX Item NO.: F37458-H

Name: JMT F4 X1 175mm FPV Racing Drone 2-4S Quadcopter BNF Frsky Version with GHF411AIO Flight Controller XT1806-2500KV Motors Ratel 1200TVL FPV Camera Supra-VTX FD800 RX
Brand: JMT
SKU: F37458-H
Price: 142.79 USD
Availability: InStock

Write a Review Sold (1)

US$ 142.79

US$ 167.99 Save US$ 25.20 (15% Off)

Quantity: Stock ( 9999998 )

Estimate Shipping Cost

Add to Cart

Product Name	JMT F4 X1 175mm FPV Racing Drone 2-4S Quadcopter BNF Frsky Version with GHF411AIO Flight Controller XT1806-2500KV Motors Ratel 1200TVL FPV Camera Supra-VTX FD800 RX
Item NO.	F37458-H
Weight	0.49 kg = 1.0803 lb = 17.2842 oz
Category	RC Toy Drone > Hot sale brand
Brand	JMT
Creation Time	2020-05-16

JMT F4 X1 175mm FPV Racing Drone 2-4S Quadcopter BNF Frsky Version with GHF411AIO Flight Controller XT1806-2500KV Motors Ratel 1200TVL FPV Camera Supra-VTX FD800 RX

FRSKY version FRSKY D8 receiver SBUS function, compatible with FRSKY ACCST
will come with all the parts welded and assembled and tested.

Package include:
1x JMT F4 X1 Frame Kit
4x XT1806-2500KV Motors (2CW+2CCW)
1x JMT GHF411AIO Flight Controller Built-in 30A ESC
4x 4032 3-blade Props (4Pairs Red)
1x Caddx.us Ratel 2.1mm+ND filter FPV Camera
1x JMT Supra-VTX 25-100-200MW VTX
1x JMT NAZE32 Buzzer
1x RunCam Speedy Bee Antenna RHCP+UFL
1x Antenna tailstock
1x FD800 Receiver

Features
Integrated flight control ESC
Night mode and day mode can be switched between day and night
Support 2-4S battery
The power cord we provide is an XT30 plug. If you need an XT60 or other plug, please contact us to replace it for you

Rack
Wheelbase: 175mm
Weight: 56g
Material: carbon fiber
Color: Matte Twill
Arm thickness: 3.5mm
Thickness of upper plate: 2mm
Floor thickness: 2.5mm
Thickness of other boards: 2mm
Applicable camera size: 19mm
Flight control installation size: 20 * 20mm, 25.5 * 25.5mm

Paddle
Product name: 4032
Hub size: 5mm
Weight: 3.09g
Material: PC
Color: transparent red

Motor
KV: 2500
Stator diameter: Φ18
Motor weight: 21.1g
Power supply voltage: 2-4s

Flight control + ESC
Flight control parameters • CPU: STM32F411CEU6 (100MHZ) • Six axes: MPU6000 (SPI connection) • Size: 32.5 * 32.5mm (25.5mm mounting hole) • Firmware version: Betaflight MATEKF411 (MK41) • OSD: Built-in BetaFlight OSD (OSD chip : AT7456E)
• Receiver: Support Frsky XM / XM + receiver / Futaba receiver / Flysky receiver / TBS Crossfire receiver / DSMX receiver
• Built-in current sensor
• Weight: 6.3g

ESC parameters
• Support BLheli / BLHELI_S
• Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600
• Input voltage: 2S-4S Lipo
• Continuous current: 30A
• Firmware: BLHELI_S

Image transmission
Project name: 5.8G 40CH 25mW 100mW 200mW switchable FPV transmitter
Input voltage: 4.5-5.2V (DC)
Input current: 500mA @ 200mW
Power: 25mW / 100mW / 200mW (switchable)
Channel: 40CH
Antenna connector: IPEX
Dimensions: 37x24x5mm
Mounting hole: 25.5x25.5mm
Weight: 2g

camera
Lens: 2.1mm
Horizontal resolution: 1200TVL
FOV: 180 degrees
Minimum delay: 8 ms
TV system: NTSC and PAL (can be changed)
Image: 16: 9 and 4: 3 (can be changed)
Language: ENG / FRANCE / RUS / SPA / PU / KOREA / China / Japan
Day / Night: Auto / Color / Black and White / External
Size: 19mm * 19mm * 19mm

Wide power input: DC 5-40V
