Copy| Product Name | FEICHAO 4108 580KV Multiaxial Brushless Motor 3-6S Pull-2000g + 13x5.5 3K Propeller CW CCW 1355 for RC DIY Quadcopters Multicopters Drone Tarot FY690S 680PRO |
| Item NO. | F42611-A |
| Weight | 0.256 kg = 0.5644 lb = 9.0301 oz |
| Category | DIY RC Drone Accessories > Motor |
| Brand | FEICHAO |
| Creation Time | 2021-01-20 |
4108 580KV Brushless Motor Pull-2000g
included:
580KV Brushless Motor × 1

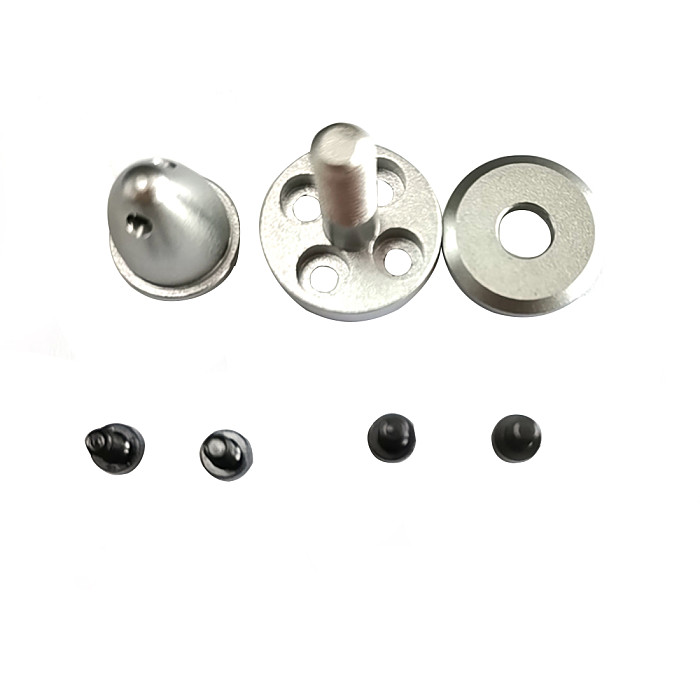

Propeller Bullet Adapter and Screws × 1 Set
CW + CCW 1355 CF Prop × 1
Brand: FEICHAO
KV: 580KV
Stator Diameter: 41mm
Stator Length: 8mm
Shaft Diameter: 4.0mm
Propeller Installation Hole Diameter: 3mm
Propeller Installation Distance: 12mm
Motor Installation Hole Diameter: 2.5mm
Motor Installation: 32mm Equilateral Triangle, 19/25mm Straight Line
Motor Dimensions(Dia.*Len): D46x25mm
Weight(g): 113g
No.of Cells(Lipo): 3-6S
Max Continuous current(A): 37A
Max Continuous Power(W): 821W
Internal resistance: 0.098
Final released 4108 series super strength out-runner high-end brushless motor, The 4108 series motor is compatible with Kawasaki, Japan 1200 # 0.2mm high efficiency silicon steel and 40UH high temperature powerful magnet.
Selected the Japanese NSK pure imported bearings to reduce motor vibration, shell using high-precision CNC machining and professional balancing test, making concentricity, balance is greatly enhanced.
4108 Series high-end brushless motor perfectly compatible with more than 99% of commercially available brushless ESC.
Low vibration motor great for flying
Features:
-To make aircraft more stable
-Less operating noise
-More efficient
-Bearings long life.
